Description
These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
Specification

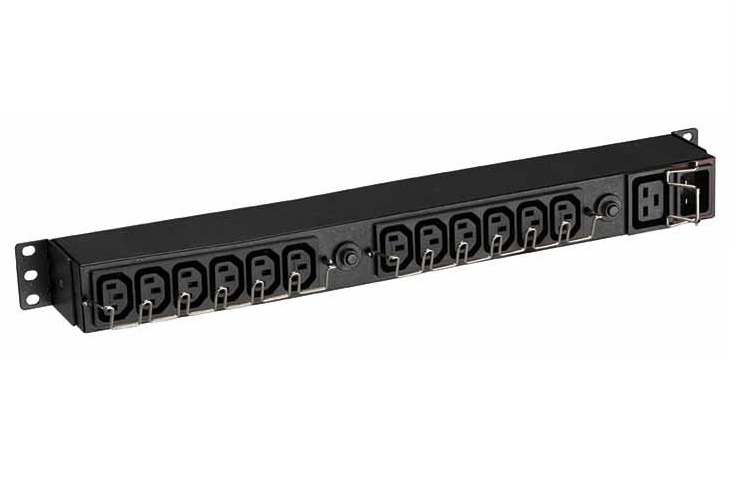

Eaton FlexPDU - power distribution unit - 3000 VA
|
Device Type
|
Power distribution unit - rack-mountable
|
Rack Size
|
19 inch - 1U
|
Input Voltage
|
AC 220-240 V
|
Power Capacity
|
3000 VA
|
Input Connectors
|
1 x power IEC 60320 C20 16A
|
Output connectors
|
12 x IEC connector ¦ 1 x IEC connector
|
Dimensions (WxDxH)
|
48.3 cm x 8 cm x 4.4 cm
|
Extended Specification
General
|
Device Type
|
Power distribution unit - rack-mountable
|
Height (Rack Units)
|
1U
|
Rack Size
|
19 inch
|
Dimensions & Weight
|
Depth
|
8 cm
|
Height
|
4.4 cm
|
Width
|
48.3 cm
|
Environmental Parameters
|
Max Operating Temperature
|
45 °C
|
Min Operating Temperature
|
0 °C
|
Miscellaneous
|
Cables Included
|
2 x power cable
|
Power Device
|
Circuit Protection
|
Circuit breaker
|
Input Connectors
|
1 x power IEC 60320 C20 16A
|
Input Voltage
|
AC 220-240 V
|
Power Capacity
|
3000 VA
|
Power Output Connectors Details
|
12 x IEC connector ¦ 1 x IEC connector
|
Box Contents
- Eaton Power Distribution unit
- IEC 16A/IEC 16A power cord x 2
- Brackets for 19 inch mounting or on UPSs with RT form factor
