- Innovative Side Connection
- Exclusively for ThinkPad Notebooks
- Designed with Enterprise IT in mind
- Upgraded Performance
- Kensington Lock Slot
- 1 x Ethernet LAN (RJ-45) Port
- Combo Headphone/Mic Port
- 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports
- 3.5 mm Headphone Connectivity
- 2 x USB 2.0, 1 x VGA (D-Sub), 1 x DisplayPorts
- Docking Connectivity Technology |
Overview
|
Product Name: |

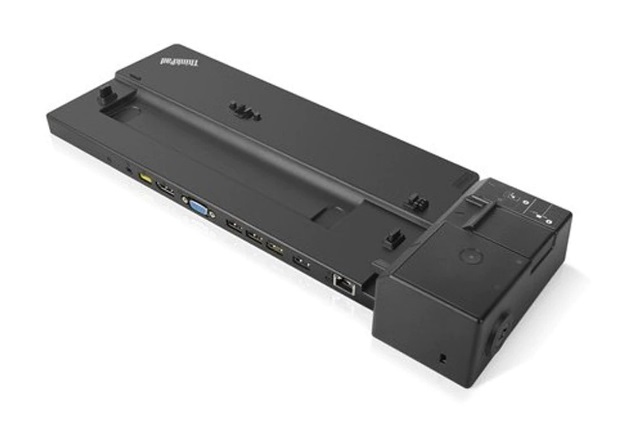

Lenovo ThinkPad Docking Station 40AG0090UK Type G VGA Display Port USB 3.1 90W |
|
Product Code: |
40AG0090UK |
| Pack Size: |
1 |
| Condition: |
Brand New
|
| Warranty: |
yes 12 Months |
|
Despatch Time: |
Usually ships same working day* |
|
Availability:
|
IN STOCK |
| Category: |
Laptop Stands |
Description
The ThinkPad Basic Docking Station is an innovative side connecting dock, designed exclusively for 2018 ThinkPad notebooks that provides a driver-free way to connect conveniently and securely to a range of accessories. Connect via USB 3.0 or USB 3.1 Type-C to multiple peripherals and external displays, rapidly charging a smartphone or other smart device via the always-on, RapidCharge port, and easily remove your laptop with one press of the mechanical button.< /p> Designed for large enterprise environments, ThinkPad Basic Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed and extensively tested, ThinkPad Baisc Docking Stations provide a seamless docking experience for users equipped with Lenovo ThinkPad X1 Carbon, X1 Series, L Series, or T Series laptops.
Tech Specs
| |
|
|
Color
|
Black
|
|
Max Number of External Monitors
|
1
|
|
Weight
|
0.74 kg (1.63 lbs)
|
|
Refresh Rate
|
DisplayPort: 4096 x 2160 @ 60 Hz; VGA: 2048 x 1536 @ 85 Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
|
|
AC Plug
|
UK Standard Plug Type G
|
|
Hardware Requirements
|
ThinkPad Side Docking Connector
|
|
Warranty
|
CRU
|
|
Output Power
|
65 W
|
|
Brand
|
ThinkPad
|
|
OS Requirements
|
Windows 10
|
|
Agency Approvals
|
AS/NZS S-DOC, BSMI, CB, CE, EAC, EU DOC, FCC, ICES, KCC, NOM, Ukr SEPRO, UL / cUL, VCCI
|
|
Audio Ports
|
1 x 3.5 mm Stereo/Mic Combo Port
|
|
Charging Port
|
ThinkPad Slim-tip Port
|
|
USB Ports
|
2 x USB 3.0 (5 Gbps, 1 always-on); 2 x USB 2.0
|
|
Video Ports
|
1 x DisplayPort 1.4; 1 x VGA
|
|
Package Type
|
Brown box
|
| |
|
|
Maximum Operating Temperature
|
35 degrees Celsius (95 degrees Fahrenheit)
|
|
Minimum Operating Temperature
|
0 degrees Celsius (32 degrees Fahrenheit)
|
|
Driver Needed
|
Preloaded in select ThinkPad laptops
|
|
Input Power
|
90 W
|
|
Power Button
|
Yes
|
|
Shipment Group
|
ThinkPad Basic Docking Station; ThinkPad Slim-tip 90 W AC power adapter; Power cord; Product information, safety and warranty poster
|
|
Compatibility
|
P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280
|
|
Supported Operating Systems
|
OS Independent
|
Box Contents
- ThinkPad Ultra Docking Station
- ThinkPad Power Adapter and Power Cord
