Description
Innovative Thermal-Sensing Motion Detection Technology
This system features Swann’s True Detect PIR Thermal Sensing technology to reliably detect heat-generating moving objects, such as people, large pets & cars. With more accurate motion detection you have more reliable notifications & recording, eliminating false triggers such as falling leaves, bugs, rain & more, saving you hard drive space & playback time.
Capture amazing detail with 3 Megapixel resolution, which has 52% more pixels than Full HD 1080p (2MP). Identify faces, number plates and clothing patterns with crystal clear images and enjoy peace of mind 24/7.
Cameras
This home security system comes with a massive 2TB hard drive & 12 weatherproof PRO-3MPMSB security cameras built tough for the outdoors or indoors. See in the dark up to 30 metres with the camera’s powerful infrared night vision.
The cameras come with BNC cables. If your property has existing BNC cables, we advise you to test your new system for 2 days with the existing cables before full installation. For optimum performance, we recommend you use the new cables supplied.
Convenience
The HomeSafe Views app ensures you’ll always be connected to your home or business, allowing you to see the cameras on your phone or tablet.
You can even search the recordings to play them back, wherever you are in the world.

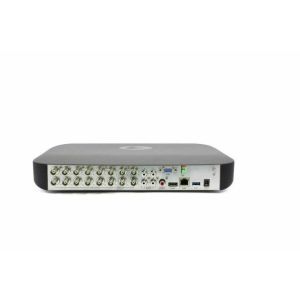

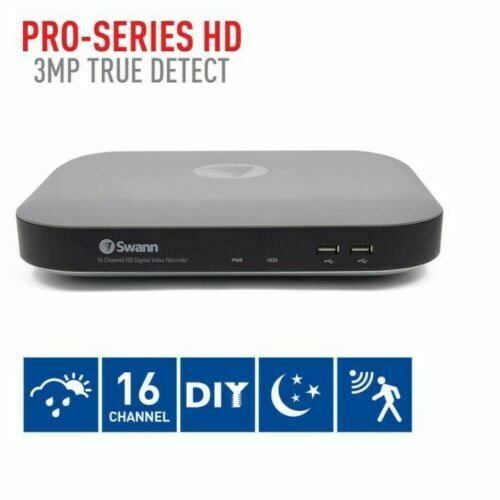

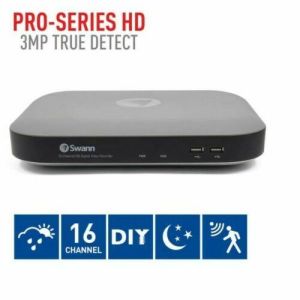

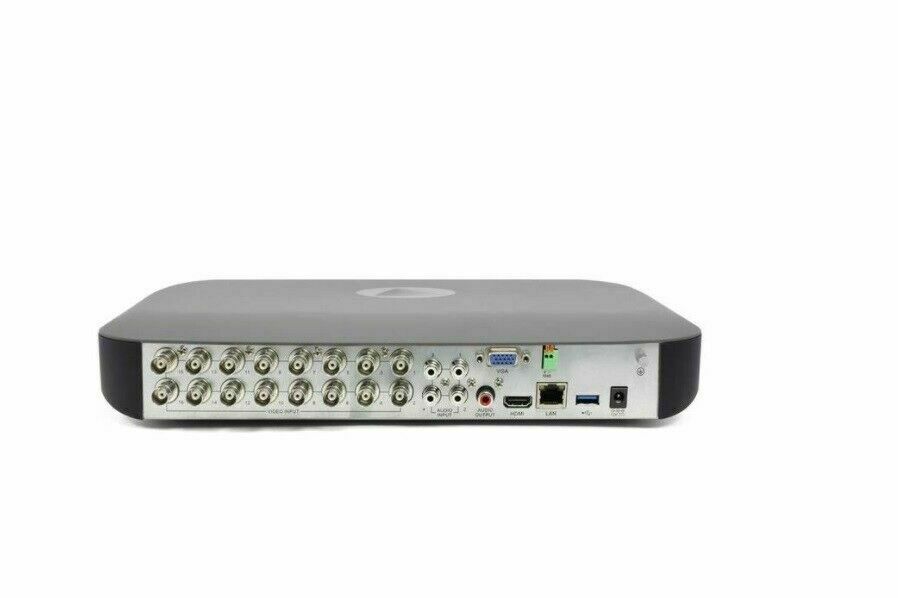

DVR-4780 16 Channel Digital Video Recorder
Video
Video Input 16 Channels
Video Outputs VGA, HDMI Display
Resolution Up to 1080p
Audio
Audio Input 1 x RCA
Audio Output 1 x RCA
Recording
Recording Resolution Up to 3MP
Hard Drive Support Includes 2TB SATA HDD (supports up to 6TB)
Connection
Network Interface RJ45 Port x 1
USB Interface USB 2.0 x 3 (2 on front, 1 on back)
Software
Computer Operating System Windows, Mac OS
Internet Viewing HomeSafe View App
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets
General
Dimensions
(WxDxH)10.83 inches x 8.66 inches x 2.09 inches
275mm x 220mm x 53mm
PRO-3MPMSB Thermal-Sensing Security Camera
Video
Video Quality 3MP (1.5x 1080p)
Viewing Angle 64°
Night Vision Night Vision Distance Up to 100ft
30m
General
PIR Thermal / Motion Sensor Yes, True Detect
PIR Sensor Range Up to 32ft
10mIndoor / Outdoor Indoor or Outdoor, IP66 rated
Audio Microphone No
Operating Temperature-4°F ~ 122°F
-20°C ~ 50°C
Body Construction Aluminum
Dimensions incl. stand
5.94 inch x 2.76 inch x 2.76 inch
151mm x 70mm x 70mm

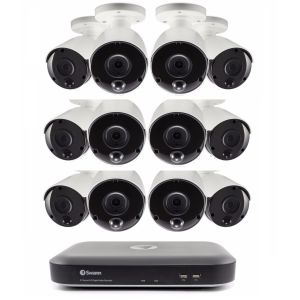

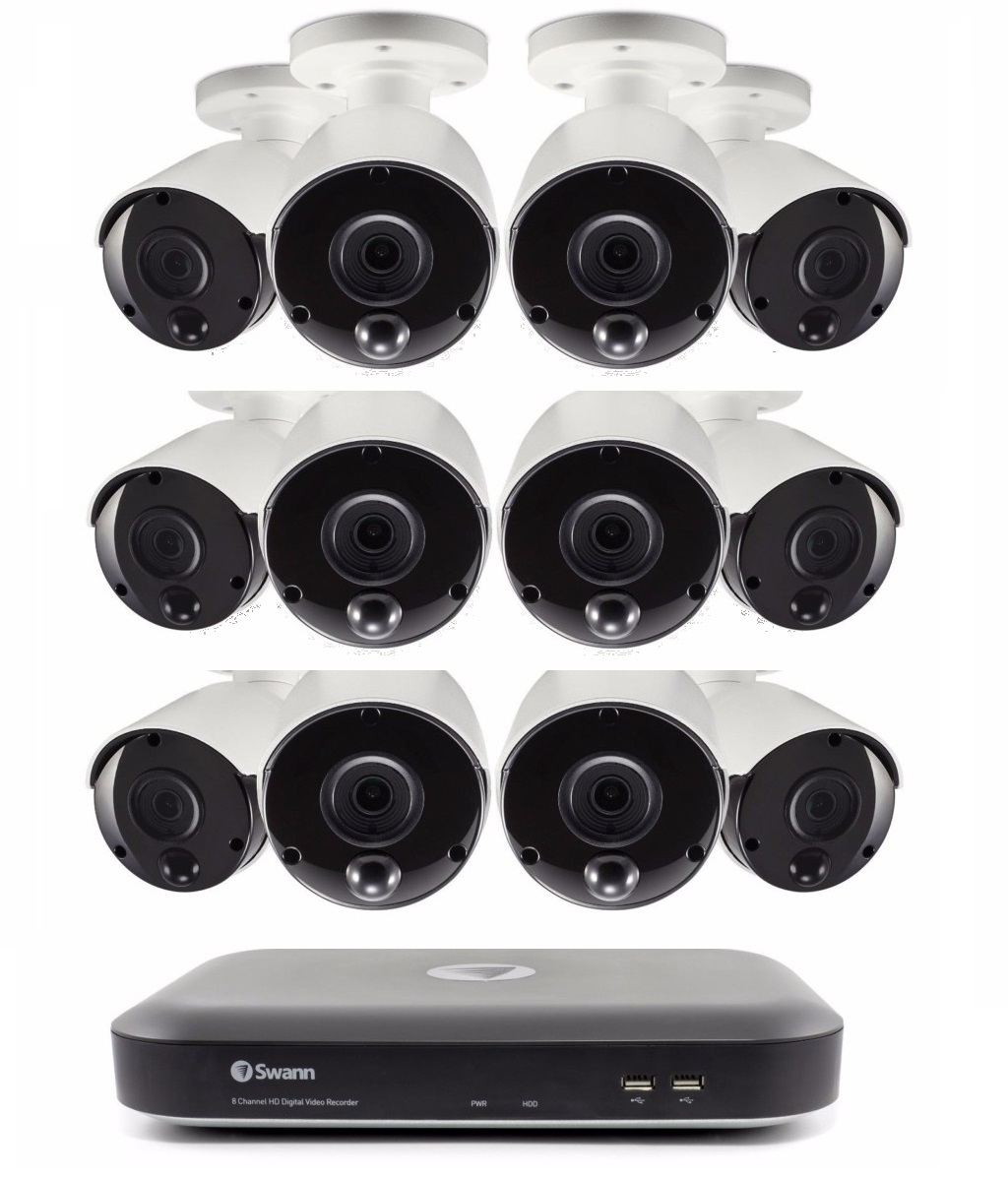

Box Contents
DVR-4780 16 Channel DVR with 2TB Hard Drive
3MPMSB Cameras x 12
BNC Cables x 12
Ethernet Cable
HDMI Cable
Power Adapter and Splitter
Mouse
Quick Start Guide
Theft Deterrent Stickers
