Description
Bright Warning Lights
Heat & motion activate the Sensor Warning Lights, helping you deter any potential intruders.
Color Night Vision
Get color video at night up with the Sensor Warning Lights up to 32ft (10m). See the colors of clothing, cars and more for enhanced evidence.
Sound an Alarm
Protect the ones you love with a loud siren that can be triggered automatically when activity occurs or manually via the app.
Speak to See
Enjoy hands-free security using voice commands. Stream video from your camera via the Google Assistant & Chromecast, Google Home Hub, or via Alexa devices with a screen, such as Echo Spot, Echo Show or 4K Fire TV.
True Detect Heat & Motion Detection
Warm objects, like people and cars, trigger recording, push notifications & the sensor warning lights. It can also be set to record 24/7.
Monitor the Outdoors
Mount cameras outdoors. Weatherproof design, IP66 rating. Built to withstand rain, snow & heat, all year round.
Save Evidence Off-Site
Set up the system to upload footage and still images to your Dropbox account in the cloud. So even if your video recorder gets stolen, you’ll have video evidence off-site.
Increase Relevance with Video Analytics
Set up Line Crossing Detection, Intrusion Detection and Static Object Detection to trigger recording & push notifications. Combine them with True Detect heat-sensing for improved relevance. Analytics can be used only on 1 camera at a time.
Free Storage to Hard Drive
The massive 2TB HDD can store months of footage before overwriting older ones. Easily transfer videos to a USB stick or download via network with no ongoing fees ever.
Smart Search Finds Movement in Specific Areas
Select a specific area of the image to search for movement within the recordings. Highlight the position of a stolen object and Smart Search will find motion around that area.
Security made Smarter: "Alexa, show me the front door. " with this security system You can speak to see as it works with Alexa enabled smart devices like your echo Show, echo spot, and 4K Fire TV. It's also compatible with Google Assistant and Chromecast. Enjoy security in the palm of your hands with live streaming from multiple cameras and multiple sites, playback video, receive push notifications and more on your mobile device via the latest Swann security app

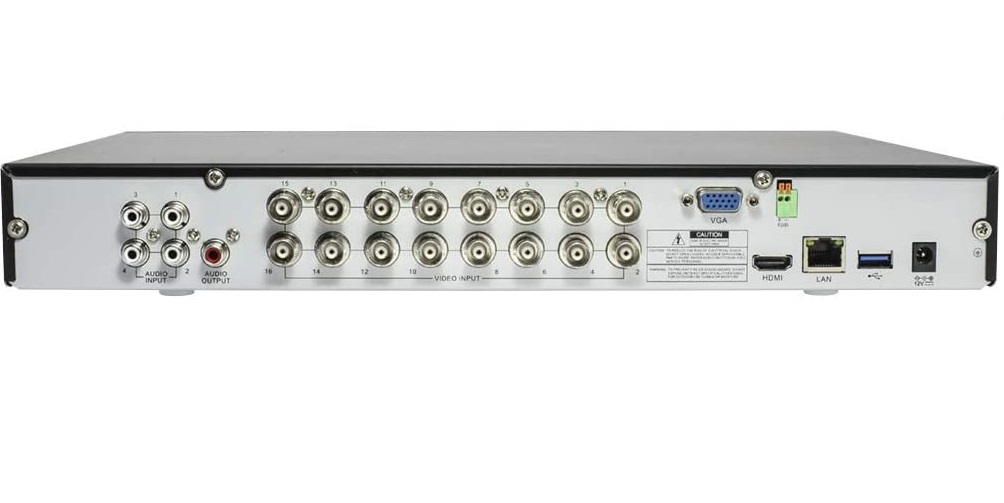

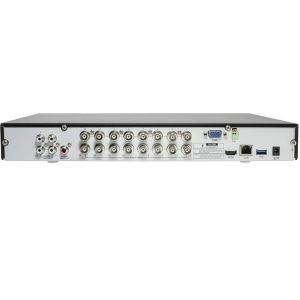

DVR-5580 16 Channel 4K Digital Video Recorder
Video
Video Input
16 Channels
Video Outputs
VGA, HDMI
Display Resolution
Up to 4K
Audio
Audio Input
4 x RCA
Audio Output
1 x RCA
Recording
Recording Resolution
Up to 4K
Hard Drive Support
SATA HDD 2TB (supports up to 6TB)
Connection
Network Interface
RJ45 x 1
USB Interface
USB 2.0 (front) x 1, USB 3.0 (back) x 1
Software
Computer Operating System
Windows, Mac OS
Internet Viewing
Swann Security App (newer)
HomeSafe View App (older)
Handheld Device Supported
iOS, Android, 3G/4G Smartphones & Tablets
General
Dimensions (WxDxH)
300mm x 230mm x 64mm
PRO-4KWLB Sensor Light Security Camera
Video
Video Quality
4K (8MP) / 3840 x 2160 pixels
Viewing Angle
90°
Night Vision
Infrared Night Vision
Up to 130ft/40m (Total Darkness)
Color Night Vision
Up to 32ft/10m (color, with sensor light)
General
PIR Thermal / Motion Sensor
Yes, True Detect™
PIR Sensor Range
Up to 32ft / 10m
Indoor / Outdoor
Indoor or Outdoor, IP66 rated
Audio Microphone
No
Operating Temperature
-22°F ~ 122°F
-30°C ~ 50°C
Dimensions incl. stand
5.3 x 2.24 x 3.07 inches/ 135mm x 57mm x 78mm

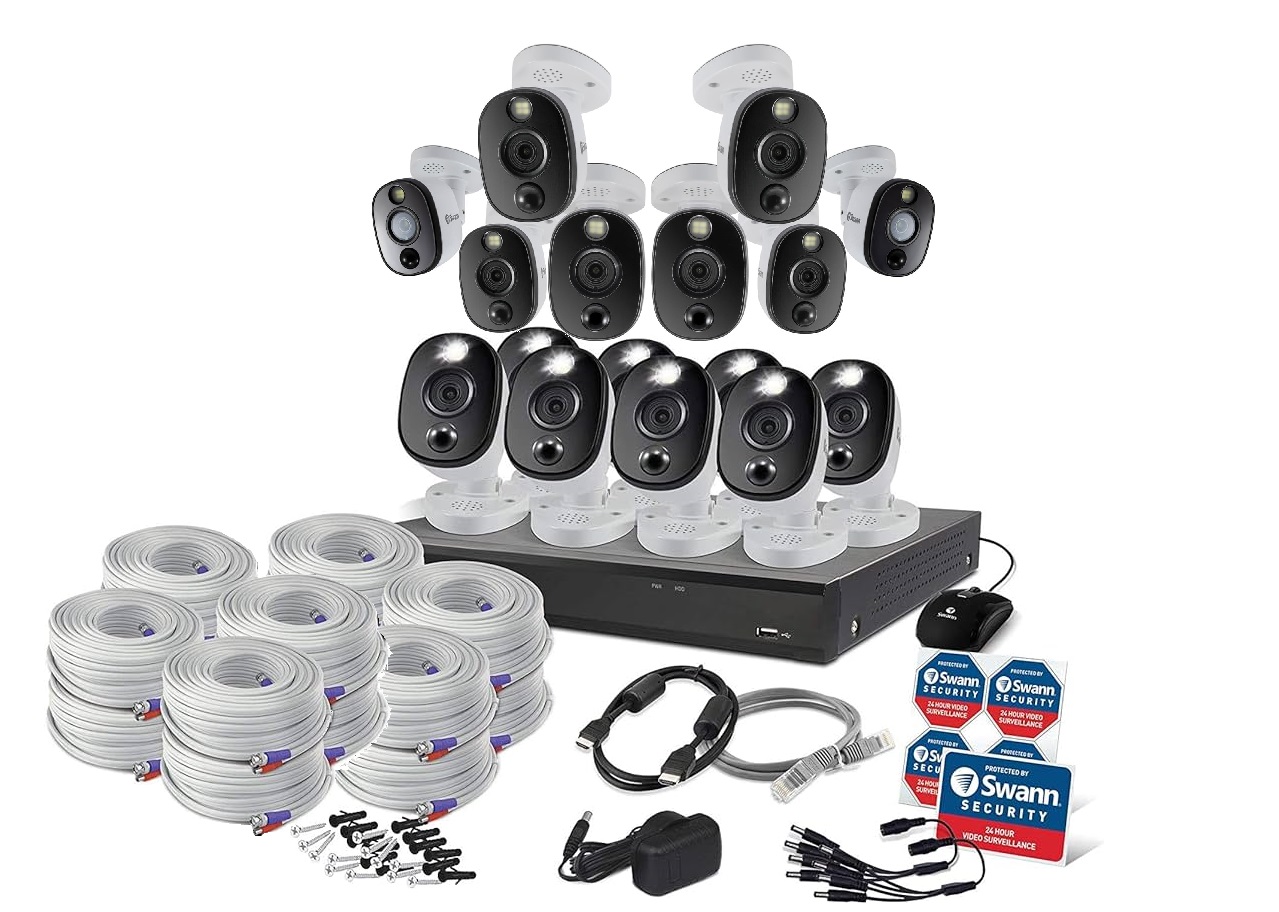

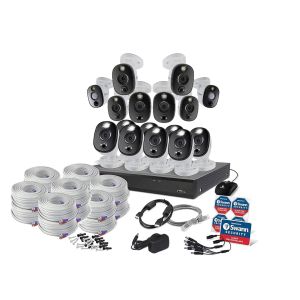

Box Contents:
- DVR 16-5580 16 Channel DVR 2TB HDD
- 16 x PRO-4KWLB Security Camera
- 16 x BNC Cable 60ft / 18m
- Ethernet Cable
- HDMI Cable
- Power Adapter & Splitter
- Mouse
- Mounting Screws & Plugs
Repacked in plain brown box, With full warranty and same day dispatch. May show minor signs of handling. Stock images are used for illustration purposes only.
